Lindner company, in response to environmental awareness, introduced Lindner's calcium sulfate raised floor. The original factory in Germany uses 100% non polluting manufacturing method to produce calcium sulfate floor with sound insulation, ventilation or high load capacity. The composition is recycled old newspaper, recycled gypsum powder and recycled industrial water, which is fully in line with the standard of green building materials. Its surface material also has a variety of texture options, such as: wood mosaic veneer material, natural stone and artificial stone and even glass also made of elevated floor. These materials have been widely used in residential buildings, office buildings, museums, theatres, airports and other places in Germany. Yintian expects to promote this excellent and environmentally friendly calcium sulfate raised floor to Taiwan's construction industry, providing another alternative to the traditional alloy steel floor.

Characteristic:

Lindner elevated floor is a green building material with environmental protection and regeneration of calcium sulfate. The floor itself is made of extracted fiber + recycled gypsum powder + recycled industrial water from old newspapers, and the floor surface material is an integral product of the original factory.

Image provided by: Lindner, Germany

The surface material includes wood, stone, artificial stone and tile products. The surface material and the floor are protected by special plastic edging. Therefore, the floor structure will not be damaged if it is opened and closed for many times. Lindner meets the certification of German dgnb Green Products Association and the scoring mechanism of American LEED Association, and Lindner products meet the German F30 or F60 fire protection standard, which means that in case of fire, Lindner products can make people have the fire isolation effect of 30 or 60 minutes' escape.

Fire performance standard din4102 / 2

Because of the information of power supply cable trough, the use of air conditioning ventilation pipe, water pipe, gas pipe and chemical pipe under the floor, in addition to the convenience of maintenance, they also have the stability of fire isolation source. Therefore, because of the large area of space available for the purpose of protecting personnel equipment and fire protection, they have great advantages for the flatness of the environment, comfort and safety. Because of the calcium sulfate plate The advantages of incombustibility and non heat conduction become the biggest feature instead

Walking on the calcium sulfate elevated raised floor, such as walking on the cement floor, solid, no echo.

Sound insulation performance standard
LW longitudinal impact sound insulation index
73dB~47dB
DIN EN ISO 140-8 (TSM impact sound absorption value)
RW longitudinal sound insulation index 62db
DIN EN iso140-3 (LSM air borne sound absorption value)
Lnfw transverse impact sound insulation index 11 ~ 28dB
DIN EN ISO 10848-2
Dnfw transverse sound insulation index 48 ~ 51dB
DIN EN ISO 10848-2

The surface material can be provided by the original German factory with the choice of excellent log veneer, artificial stone and natural stone. At present, there are 14 kinds of wood materials: Maple, bamboo, steamed bamboo, steamed beech wood, light beech wood, oak, steamed oak, ash tree, olive ash tree, South American fork leaf tree, cherry tree, eggplant, walnut, teak. Wood surface material can also be painted bright or flat. There are also up to 15 kinds of tiles and stone materials, which can meet all kinds of design styles.

Lindner calcium sulfate elevated floor series has flexible matching degree, such as nortec + floor & more, to provide consumers with a set of economic and affordable total solution.

Product classification:

Floor and more - non movable elevated raised floor
Dimensions: 600 * 600 mm and 600 * 1200 mm
(floor & more photo provided by Lindner, Germany)
(courtesy of Lindner, Germany)
Surface plate with socket
One point load: 2-6 kn; floor thickness: 24-44 mm; combustion performance: A2 / A1 (non combustion)
Fire performance f 30 / REI 30 l system weight about 38 - 83 kg / sqm l base interval 600 x 600 mm
Nortec movable elevated raised floor
Size: 600 * 600 mm

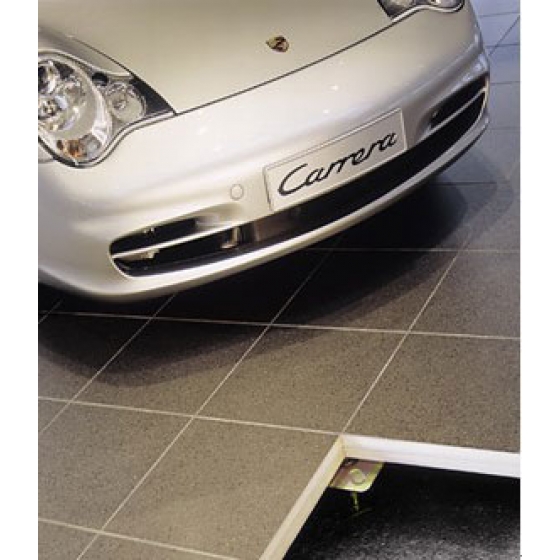

(nortec power photo provided by: Lindner, Germany)

One point load: 2-5 kn; floor thickness: 16-44 mm; combustion performance: A2 / A1 (non combustion)
Fire performance f 30 / REI 30 l system weight about 37 - 71 kg / sqm l base spacing 600 x 600 mm

Applicable place:

Office, control room, private residence, ship, museum, cinema, Concert Hall / theater, exhibition room, airport entrance and exit hall are the most suitable.
(floor & more, courtesy of Lindner, Germany) (nortec, courtesy of Lindner, Germany)
