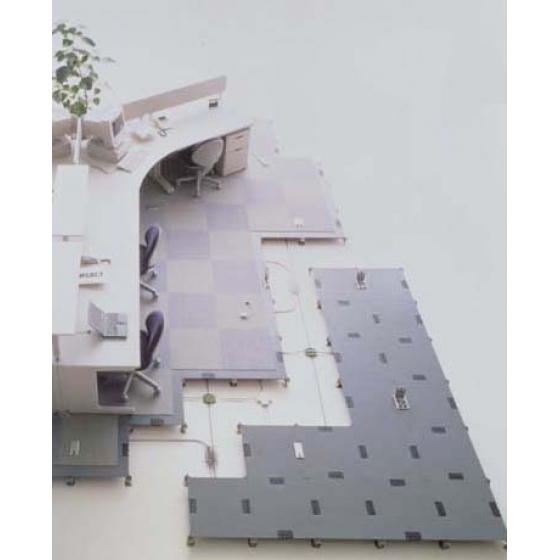

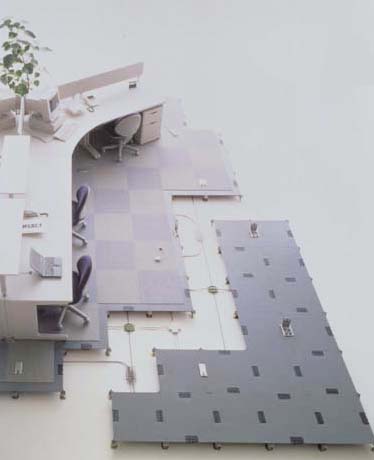

Panasonic TS-305 Steel Access Floor System (For OA office)

When network generation comes, only

steel raised floor system which only Levaflor Inc. supplies can help you solve the wiring problem which is caused by your computerized office.

Only steel raised floor system meets your requirements so much in OA office building. It´s your best choice to adopt. steel raised floor system . Although it´s your half step, it´s a stride for your modernized office.

Applicative Environment :
I.A. office building、OA network area or normal computer room

Product features :

1. Largest wiring capacity	4. Good fire-retard、Strong durability
2. Easy wiring	5. The floor finished level is excellent.
3. Assorting with special socket	6. Excellent walking feeling

Components and Parts :
Panel	Material：panel is made of high pulling steel and light-weight cementitious and is coated with phosphate by electric static powder. oad performance：Concentrated load 300㎏、Distributed load 2000㎏/㎡ JQA and JAF specified performance. Measure：500×500×26㎜（excluding coating material）
Pedestal	Floor finished height is 5㎝~20㎝
Applicative surfacing	Surfacing carpet tile 、 PVC tile 、 H.P.L. or conductive tile etc.
Other accessories	ABS outlet cover 、 bury -in socket

	As long as you install TS-305 steel access floor system , everything will be all right ! Regardless of wiring or socket installation. To deal with various needs, the wiring panel is installed not only cable but also sockets. You will not puzzle your brain about how to install the raised floor matching various needs any more. Wiring panel can promote the efficiency of installation and it is flexible to design the space because the cable line can be changed at will.

	We can close the outlet cover under no using and the raised floor will be flat.
	Pop-out outlet is easily installed. All high or low voltage cables can match it. When high or low voltage is wired, pop-out outlet and bury-in socket are installed in the wiring panel, U type opening cover or round-hole cover is matched.
	Air-condition grill opening Floor air-condition system can adopt the special floor air-condition opening that is the two adjoined wiring panels. It is easy to inter-change the wiring panels.

50 ㎜ F.H.H. Type

New 50 ㎜ F.F.H. type series is lower than before by 20 ㎜ .
There is no tension even in the room with the low ceiling.

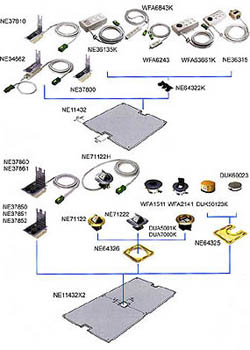

Mini-sized bury-in socket is specially developed for a series of wiring panel
The sockets for bury-in type include single socket type/single mini type and double socket type/double mini type . There are eight kinds of choices. To assort with the raised floor,

can keep the opening measure in advance. The weight and size of

TS-305 panels is lighter and handier, especially the new developed socket--single mini. Not only the price is reasonable but it owns high capacity. Besides, it applies to the 50 ㎜ -high raised floor .

* 1. Applying to the outlet of wiring panel which size is 90 ㎜ ×45 ㎜
* 2. Applying to the outlet of adjoined wiring panels which size is 90 ㎜ ×90 ㎜

Light and Handy Design; Easily Installing
Bury-in socket (305 type) is for a special purpose of a series of new products. Developing deft socket matches the size of outlet. It is easy to install and shorten the wiring hours. In addition, it will be interchanged at will to adapt the remove of equipments.

Recommend you to adopt multifunctional series of raised floor products, in order to create a comfortable OA office environment.

Material of

steel raised floor： The panel is made of formed-steel and cementitious core.

Actual Load：3.0kN(About 300Kgf) (Concentrated Load；Deflection：under 2.5㎜)
* JQA ＆ JAF specified performance
Carpet tile installation
With screw hole in corner

	Wiring Panel Bury-in socket and floor air-condition grill opening can be installed under the panel and cables are wired form the outlet of panel. Single socket/Single mini socket can be directly installed into wiring panel. Double socket/Double mini socket cab be installed into the adjoined wiring panels.
	Standard Panel The pedestal shall firmly locate panels and hold them in place without the need for screws. Securing the panels by corner-lock screws shall be optional.
	Outlet Cover The cable is wired from the outlet of wiring panel. After using, the panel will be flat again.

Type No	Product Name	Weight ( ㎏ )	Type No	Product Name	Weight ( ㎏ )	Type No	Product Name	Weight ( ㎏ )
NE11432	Wiring Panel	About 7.5kg	NE11430	Standard Panel	About8kg	NE64332K	Cable Outlet Cover	About 0.07kg

Outlet for raised floor
